Smart Tint® - H Series Power Supply

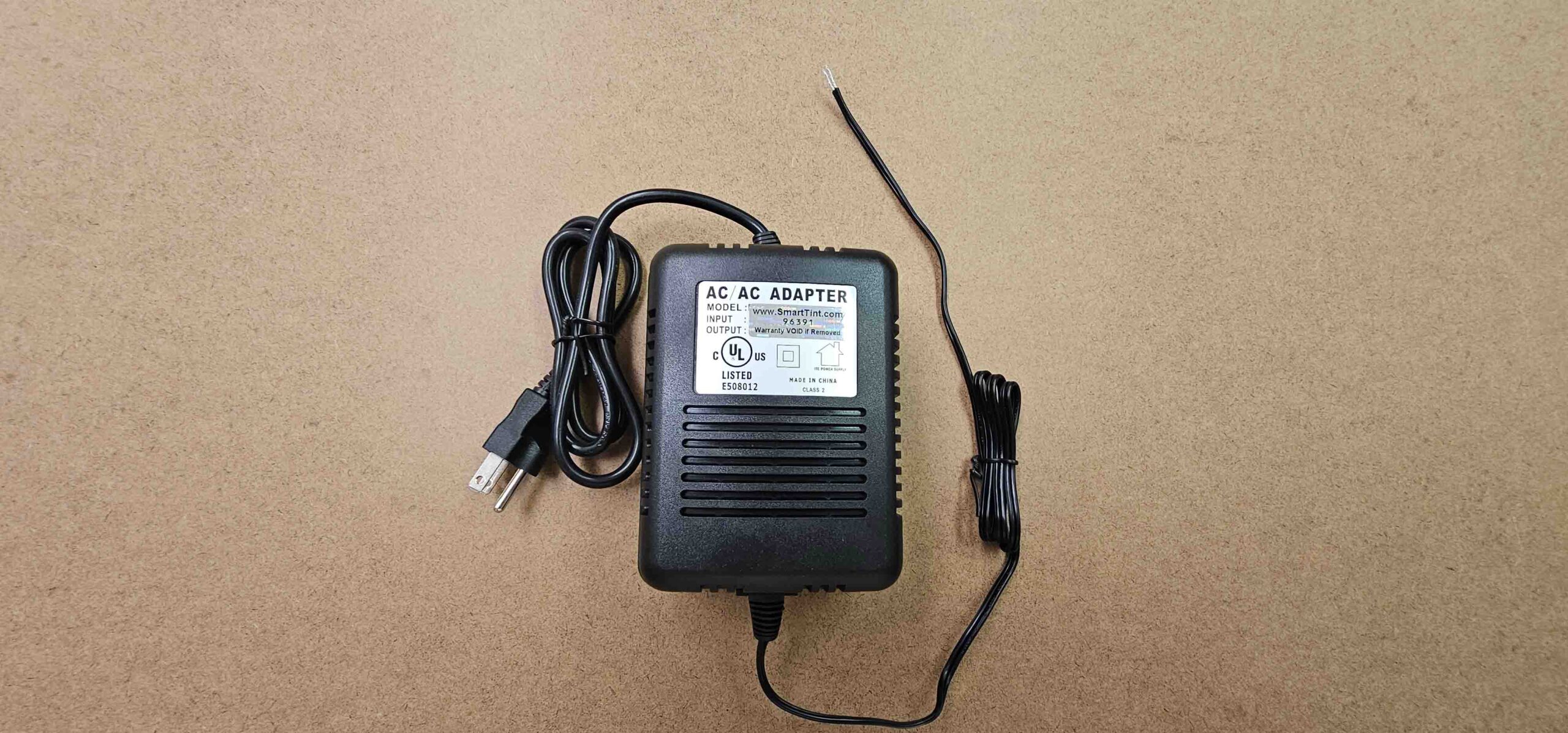

Smart Tint® - UL Series Power Supply
The 100 watt controls up to 150 square feet of material for on/off only Available in: 100 watt, 200 watt, 300 watt, 400 watt, 500 watt

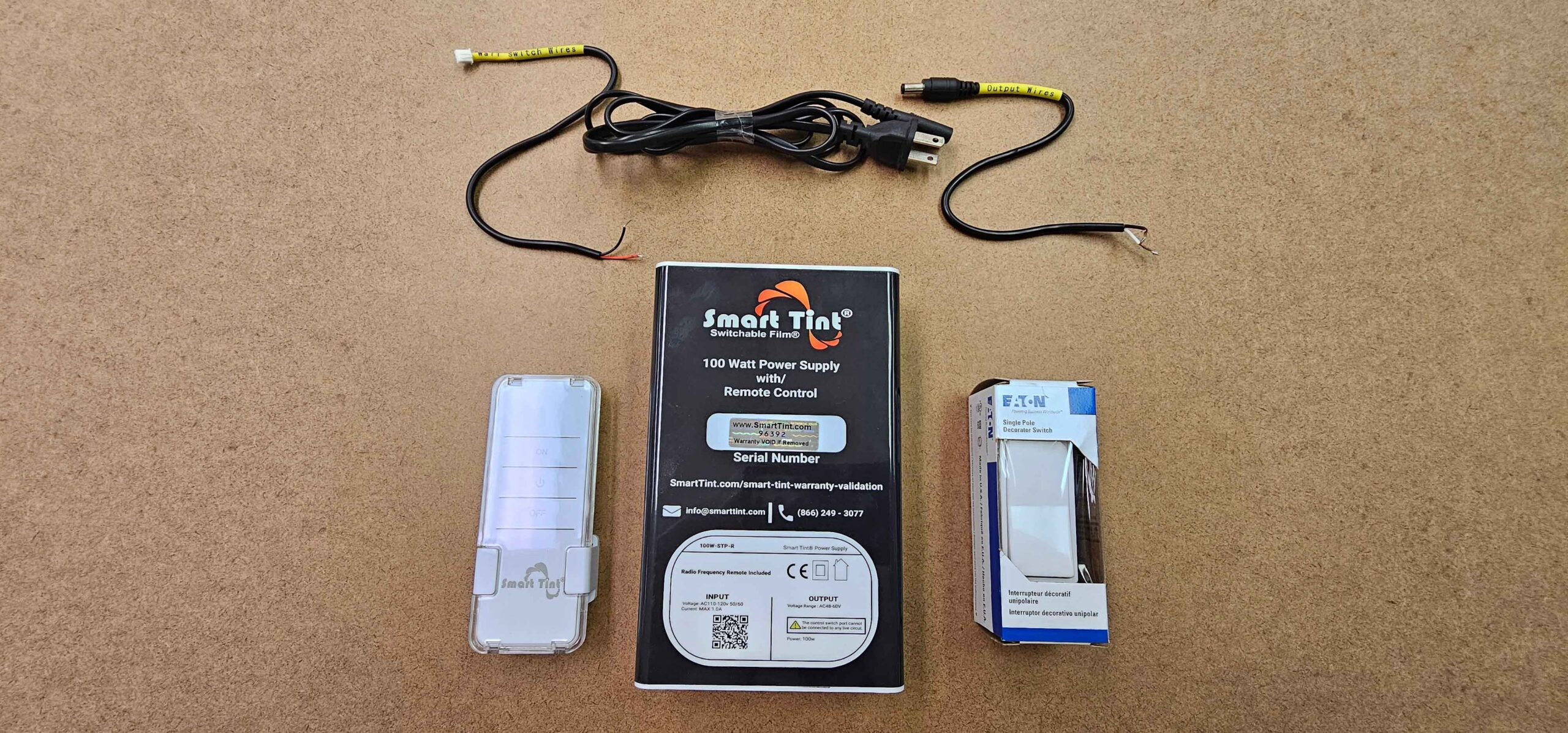

Includes:

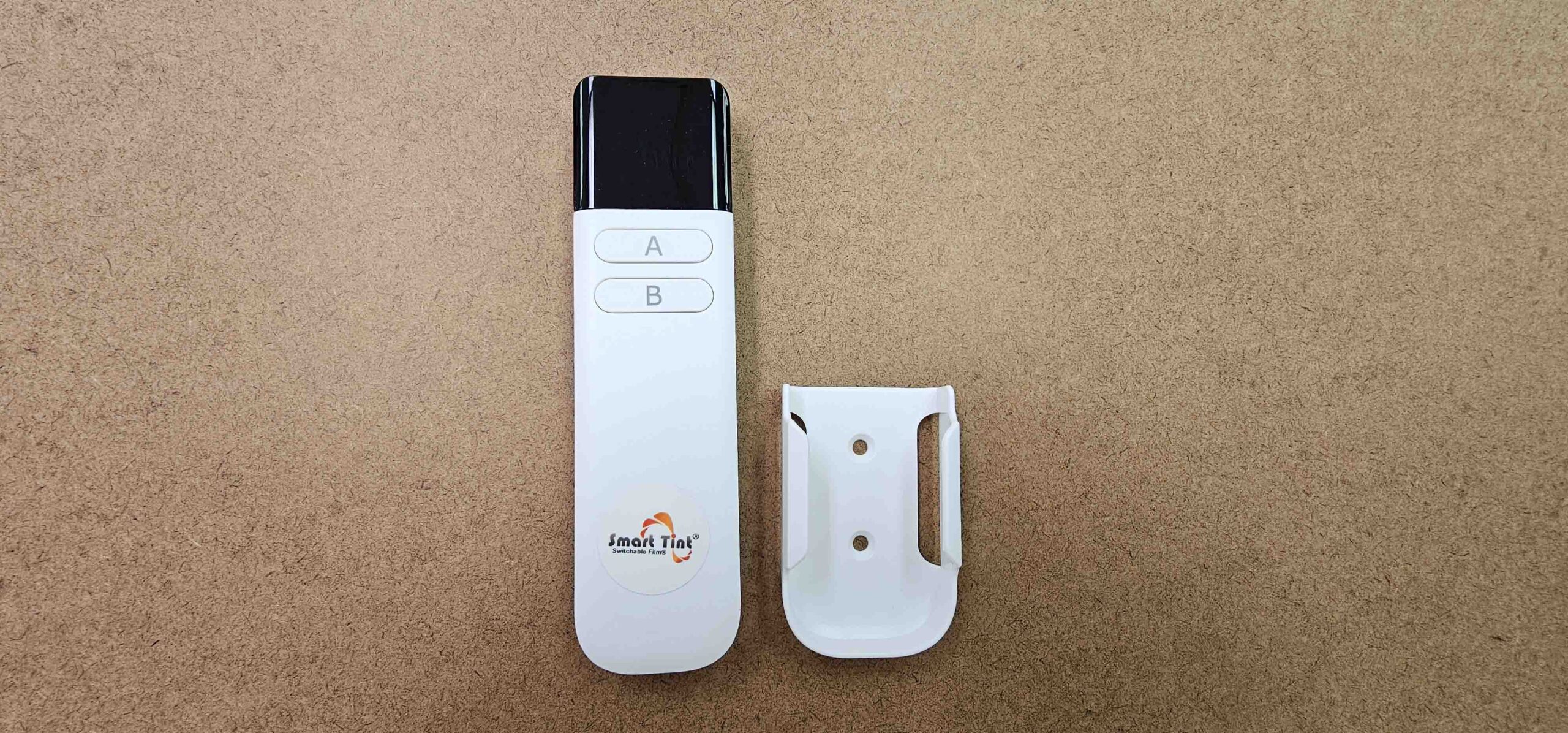

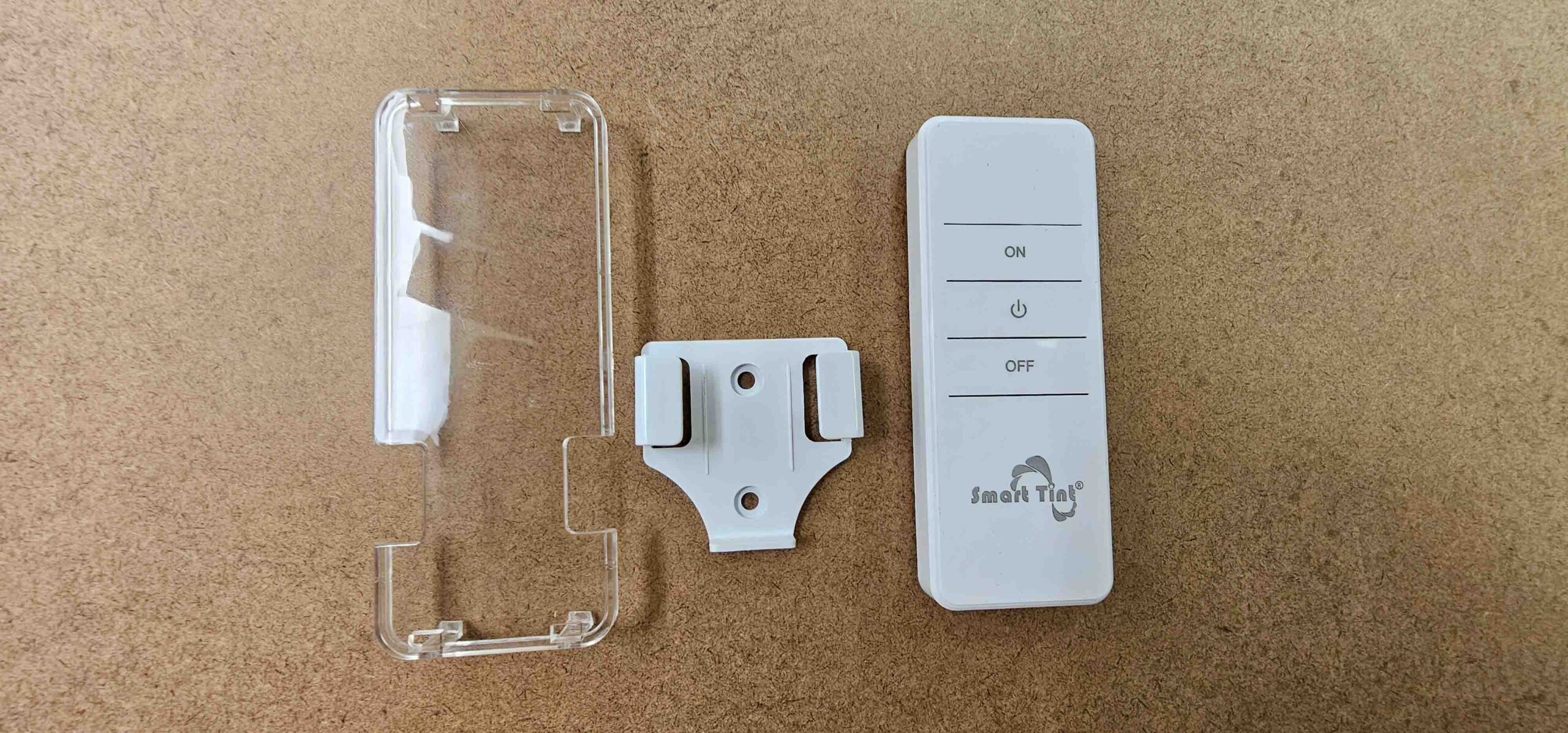

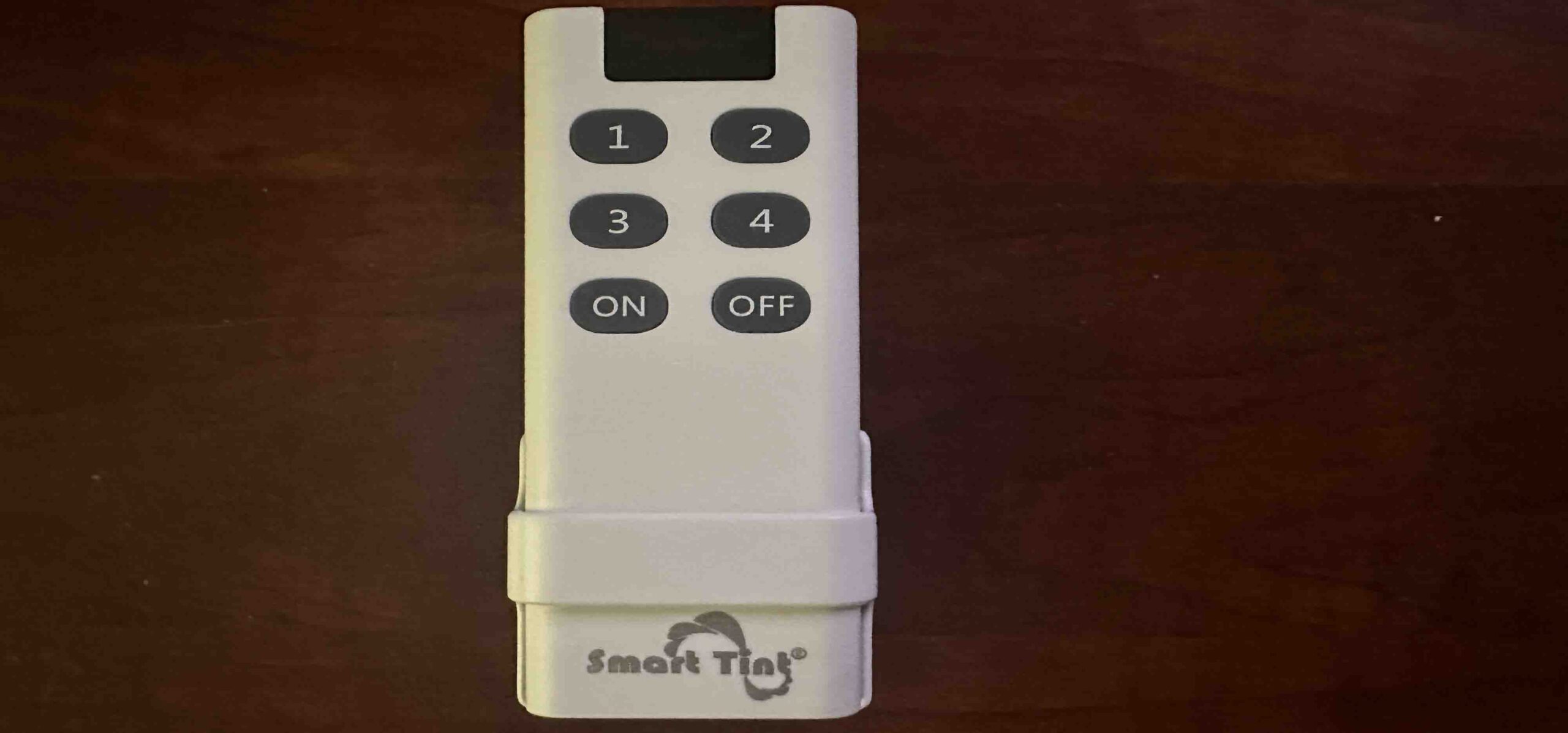

Remote Control

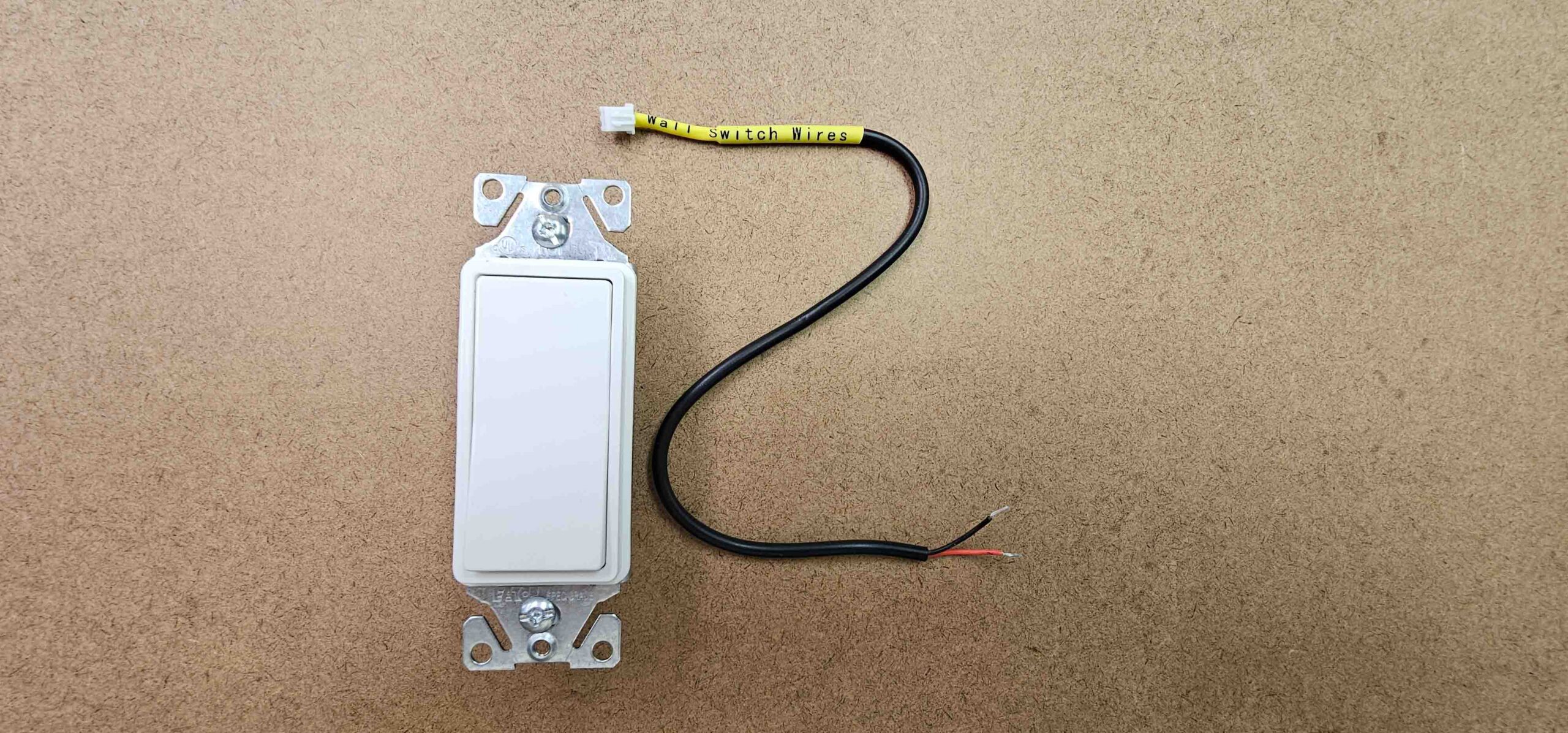

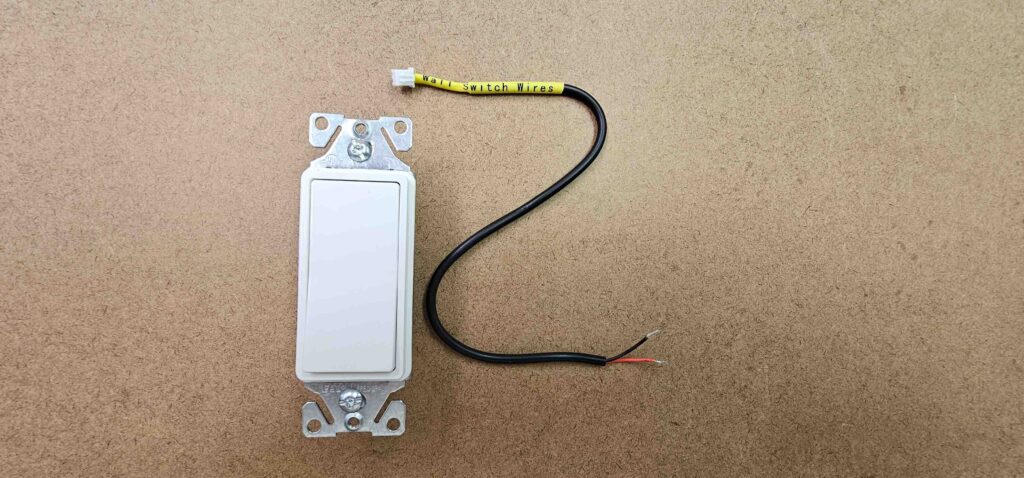

Wall Switch (optional use)
Power plug or Hard Wire

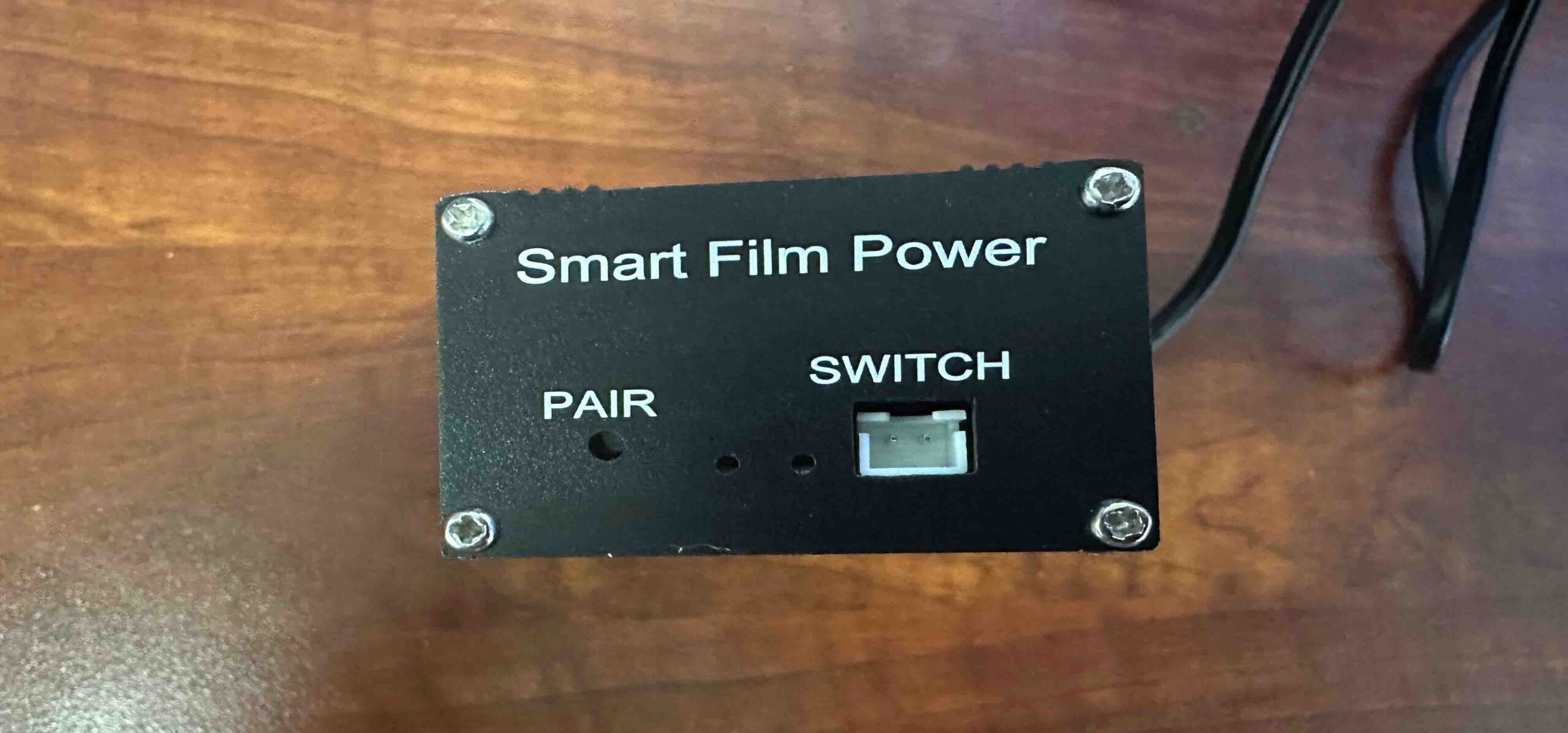

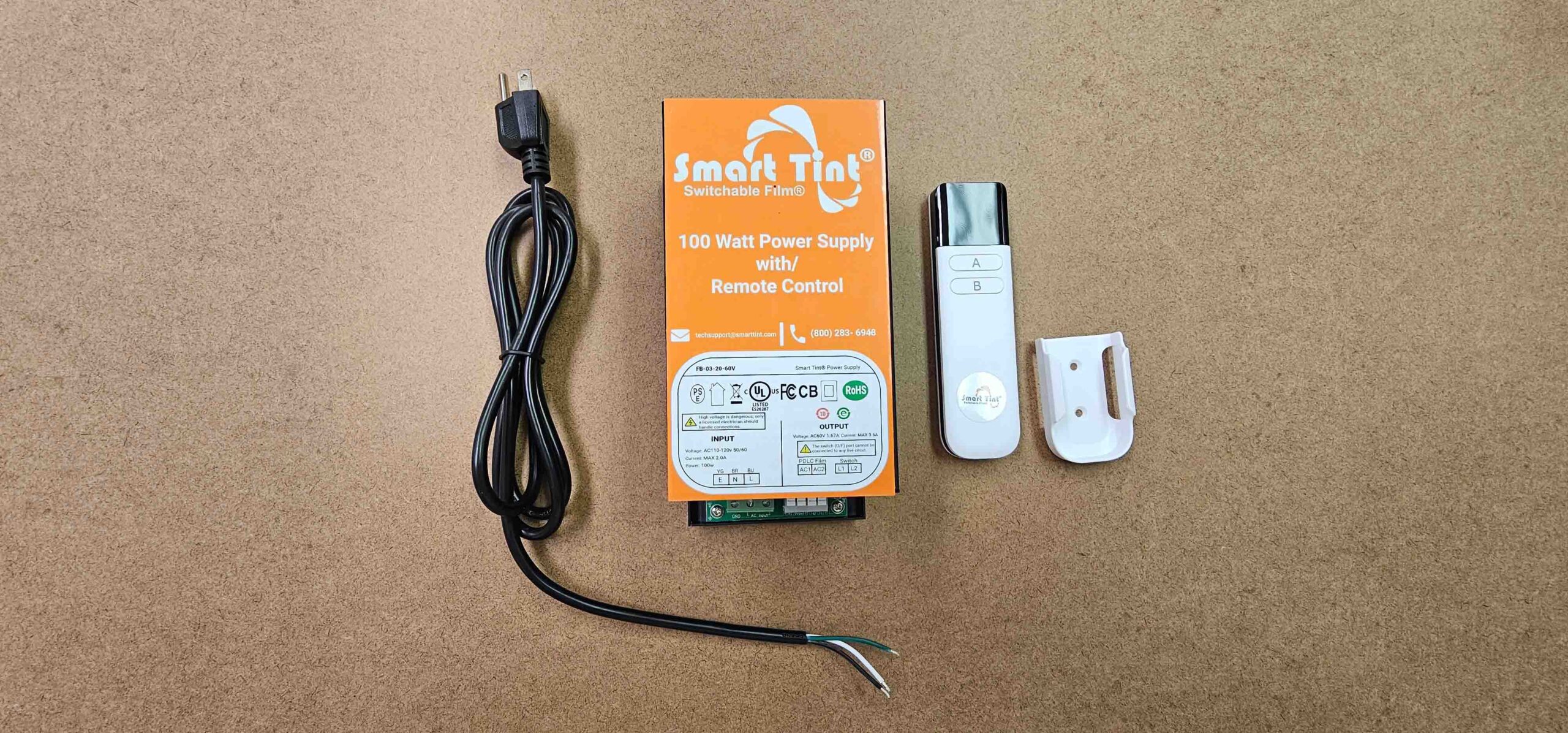

Smart Tint Power Supply UL-100 with Remote Control/Wall Switch On/Off Only
Includes remote control.
The UL-100 power control unit is extremely efficient and
designed for long term permanent installation.
The UL-100 is made of fine copper material, and has a very
stable output. This 100watt unit controls up to 150 sq. feet
meters of our Smart Tint 6th Generation Smart Film material and is constructed of a high
performance flame retardant epoxy resin casting.
The operating temperature is very low and suitable for
various environments.
The UL-100 power control unit has a circuit board that utilizes a
self recovery system designed to cut the power by itself when over
loaded. This system will auto restart when over load or short is
corrected. Includes RF remote and dry contact relay input
compatible with 3rd party control systems such as crestron, lutron,
savant, dmx etc.
Rated Power: 100W
Rated Ampere: 2A
Input Voltage: AC 110-120 vac
Output voltage: AC 48vac VAC
Size: 46mm H (3″) x 110mm W(4.3″) x 179mm L(7.2″)
