pdlc switchable smart glass film
Plug and Play, Retro-fit to existing glass, Easy Installation - Simply peel and stick with our WIFI Compatible SmartCling™ technology!

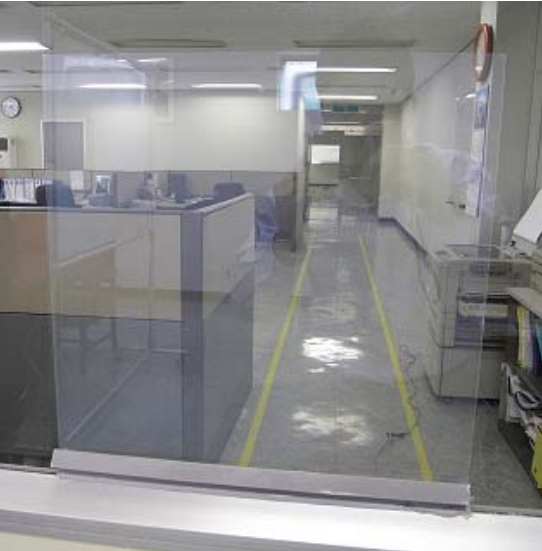

Smart Tint® is private frosted opaque when powered off and transparent clear when powered on. Smart Tint® is easily installed on any new or existing glass surface, offering durable privacy on demand, extreme clarity and maximum performance with the click of a button. 100% compatible with home automation systems, block 98% UV, and solar heat! Dim it, Project on it, Stick it Hang it, use it as a white board, high tech window treatment and more!
pdlc switchable film
********WARRANTY AVAILABLE********Contact us for details

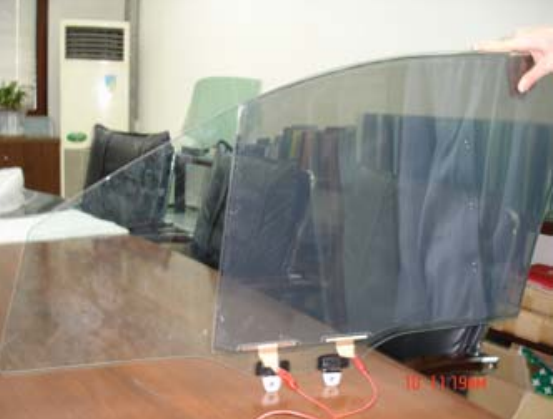

SmartTint® is a proprietary electronic switchable glass window film that can be used as a stand alone window treatment covering or laminate.

Our SUPER CLEAR SMART TINT is available in 7 COLORS WITH EASY TO INSTALL SMART CLING TECHNOLOGY including standard opaque private WHITE, BLACK, GREY , Salmon Pink , Green, Yellow, and Blue..

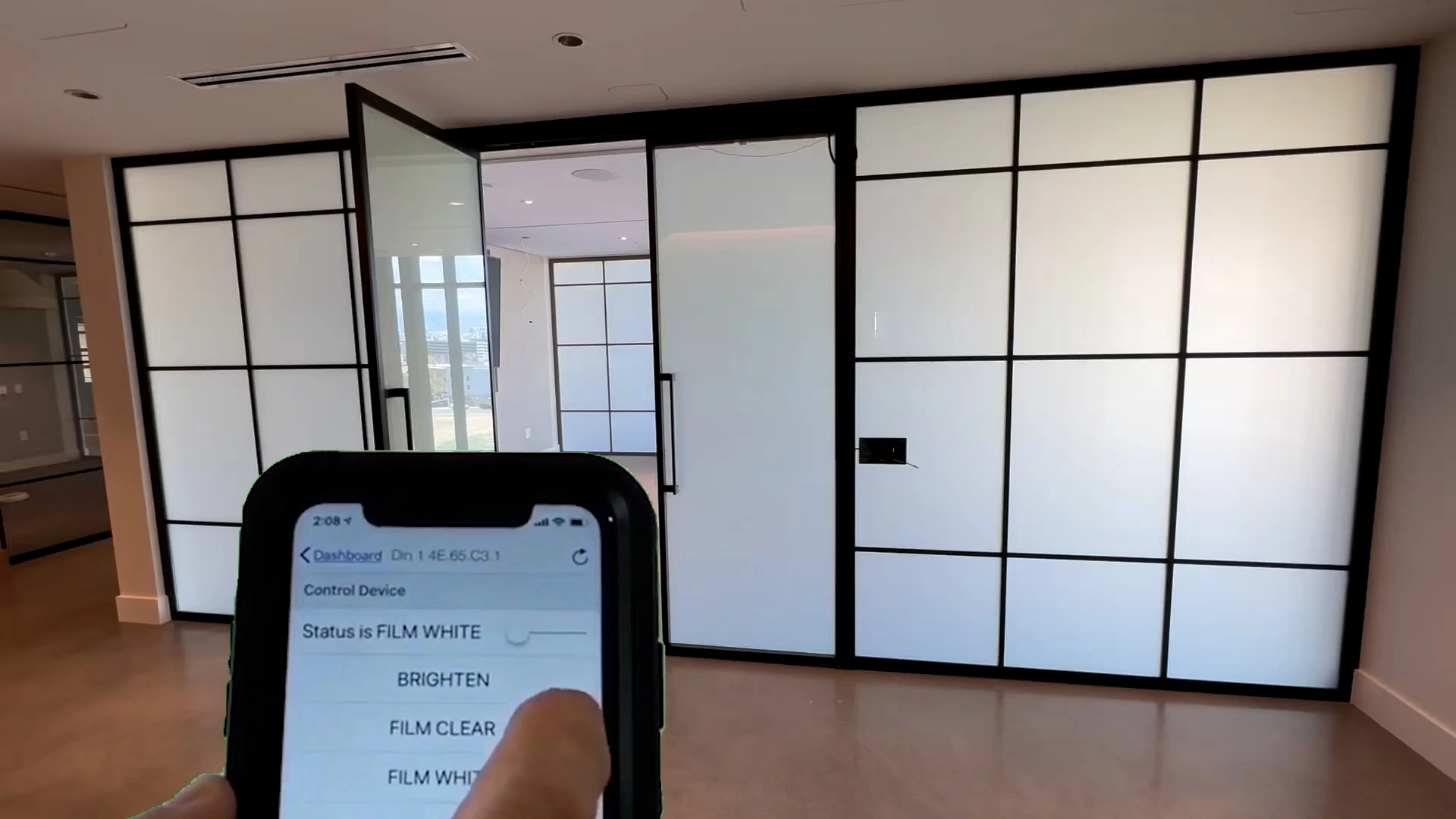

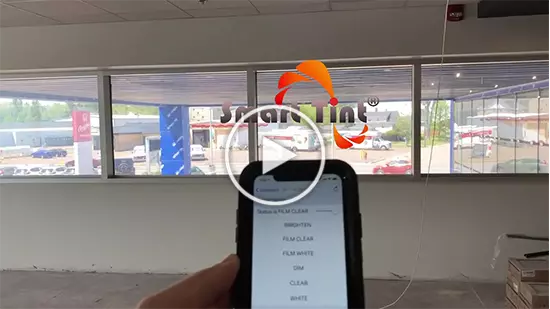

Easy to clean, durable and WIFI capable! Our smart glass film is the thickness of a credit card and is of Grade A quality providing the absolute best clarity when energized and maximum privacy in its natural state.

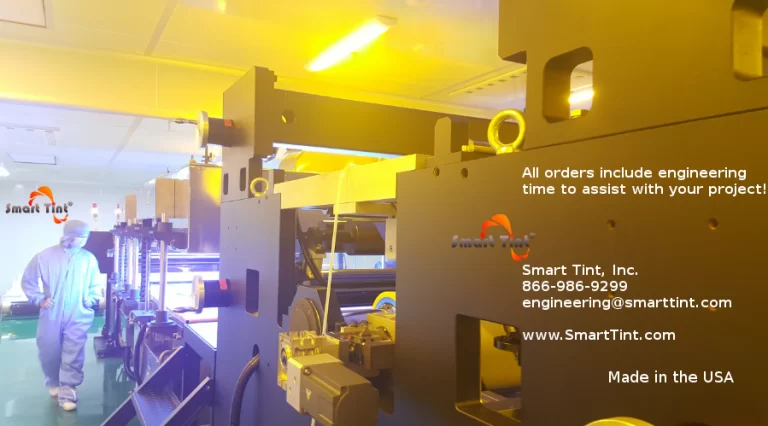

SmartTint® offers proprietary SmartCling™ easy to install technology and is proudly based in the USA. We offer an energy efficient product that we stand behind with a full WARRANTY! We offer the best turn around times in the industry and welcome your project. Find a Local Installer

"A fraction of the cost of smart glass and twice as flexible"

  • Check out our"SMART PANEL SYSTEM "
  • NO construction, applies to existing glass
  • do it yourself installation
  • BEST CLARITY AND PRIVACY IN THE INDUSTRY
  • weatherproof and scratch resistant
  • low voltage green earth product
  • We cut and size or shape
  • Pre-cut and prewired complete kit
  • unlimited applications
  • View Specification

Download installation guide

Download Smart Tint® Specifications

Contact Us & Buy Direct

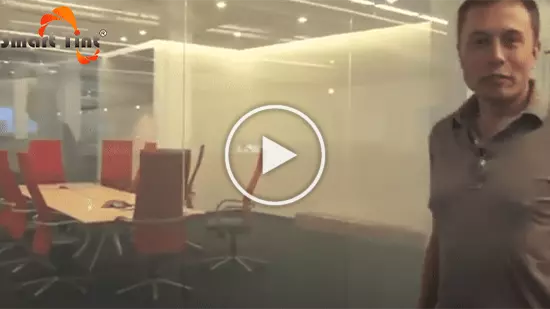

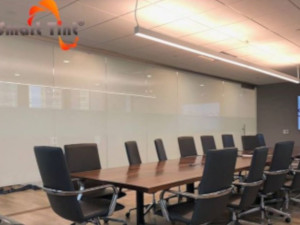

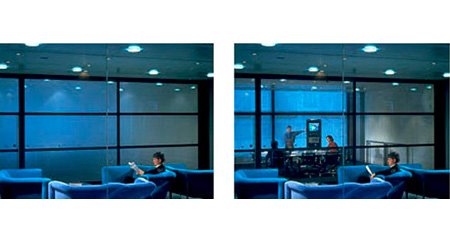

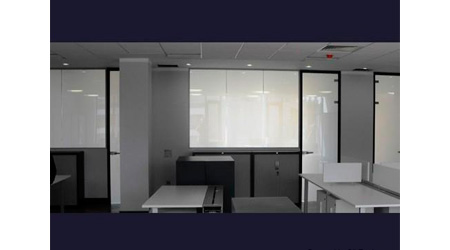

  • Interactive conference rooms
  • Solar Reduction: up to 65%
  • UV Block: up to 99%
  • Operating Temperature: -3°F ~ 144°F
  • Energy Use: 0.59 Watts/SF

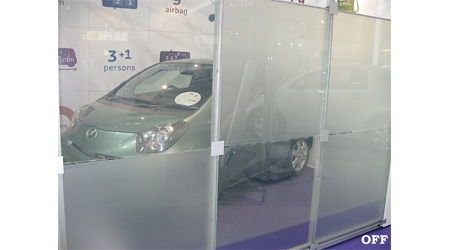

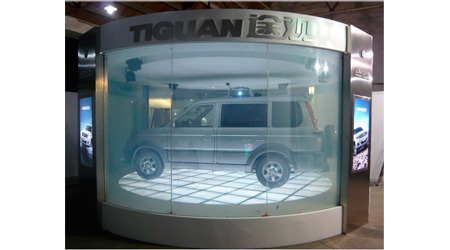

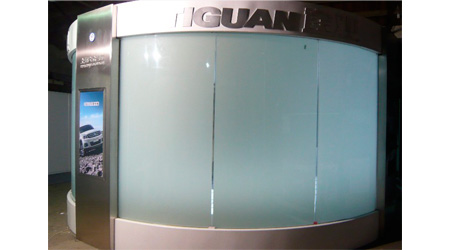

  • store front windows

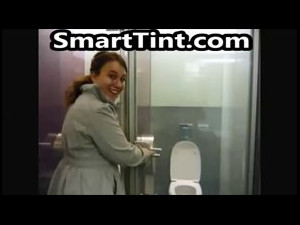

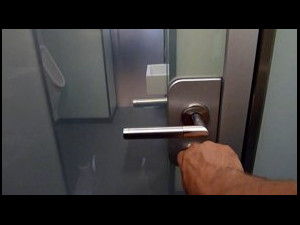

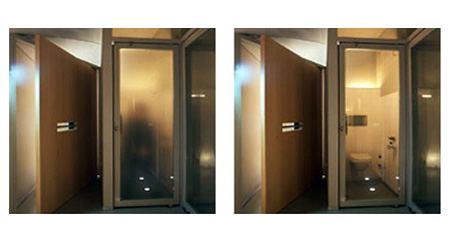

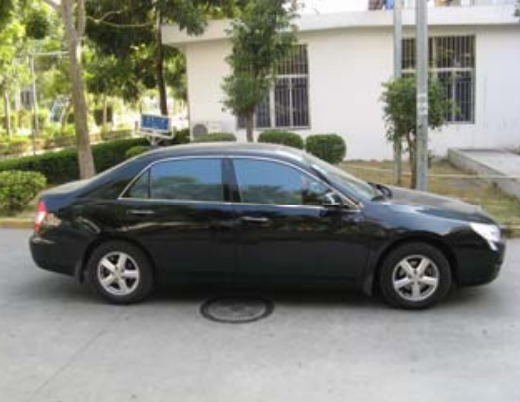

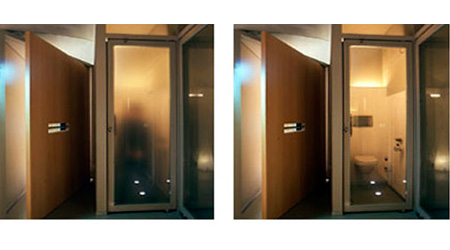

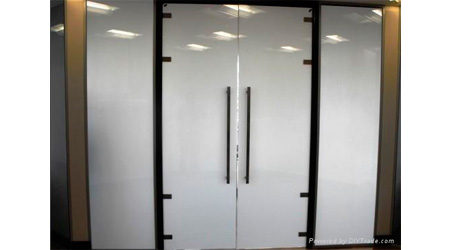

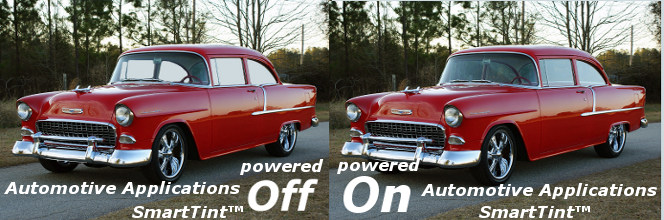

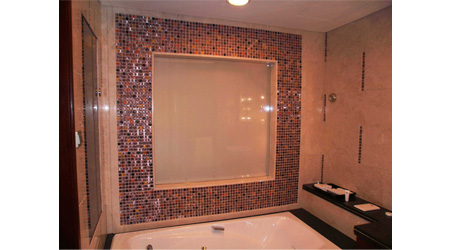

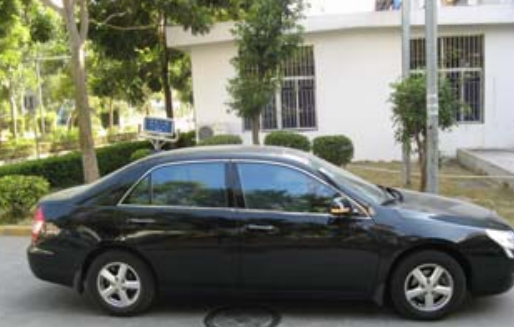

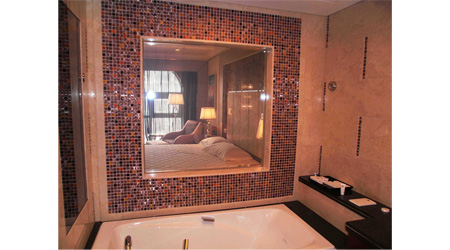

  • glass doors, car windows, bathrooms, conference rooms
  • Available in White, Gray,or Light Blue

About Smart Tint®

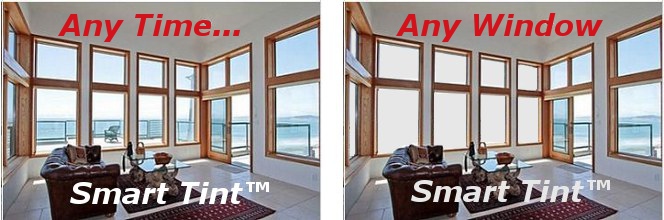

Smart Tint® is easy to install on existing windows, controls natural light settings and provides UV protection plus energy savings. This energy efficient product is the thickness of a credit card and performs like switchable privacy glass. You can bend it, trim it, project on it, Dim it with a remote control for a fraction of the cost of traditional Smart Glass.

More application

  • customize patterns with flash panorama pattern controllers
  • unique window treatments

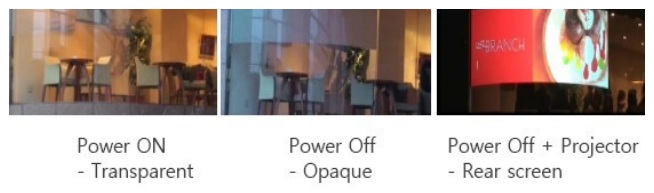

  • rear screen with projector when Smart Tint® is opaque

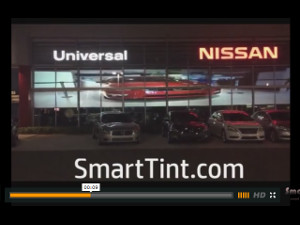

  • turn store front windows into digital build boards
  • interior, exterior , mobile applications are limitless.

Power Consumption


Smart Tint® is a GREEN PRODUCT that has a power consumption of 6~7 Watts per meter squared. Smart Tint® which is transparent when powered on and opaque when off. It blocks 99% outside UV rays.

Smart Tint® performance


  • customize patterns with flash panorama pattern controllers
  • unique window treatments
  • rear screen with projector when Smart Tint® is opaque
  • turn store front windows into digital build boards
  • interior, exterior , mobile applications are limitless.

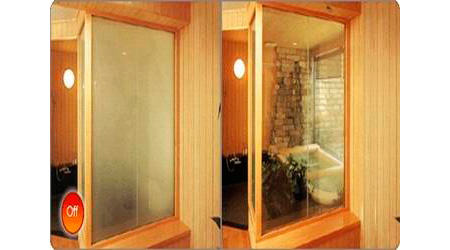

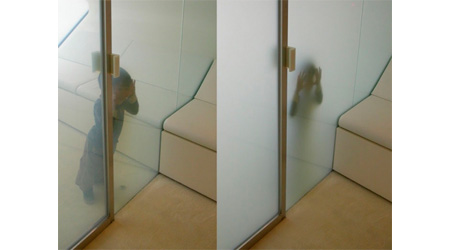

Smart Tint® is transparent when it is powered on and private when powered off. It blocks 99% of the harmful UV rays in both operating modes. Our 5th generation Smart Tint® has been rated the best in the industry and is guaranteed against manufacturer defect . We test and document all operating modes prior to shipment. Our proprietary Smart Tint® is in use in all areas of the world, and all climates with no problems. Smart Tint is easy to install on existing windows, controls natural light settings and provides UV protection plus energy savings.

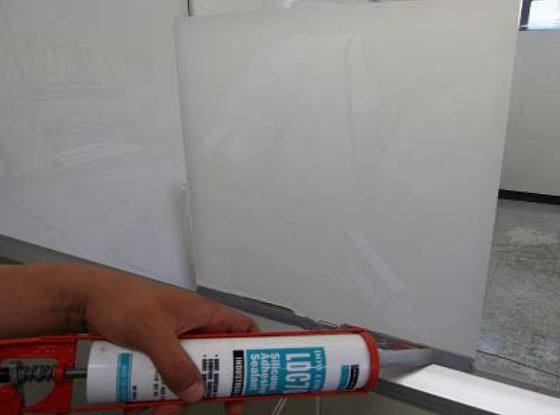

Click for Mechanical Installation Demo

Self Adhesive Installation Demo below...........

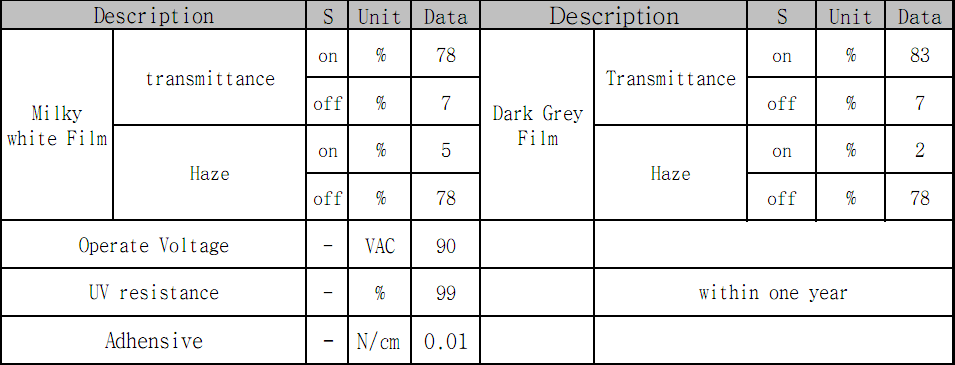

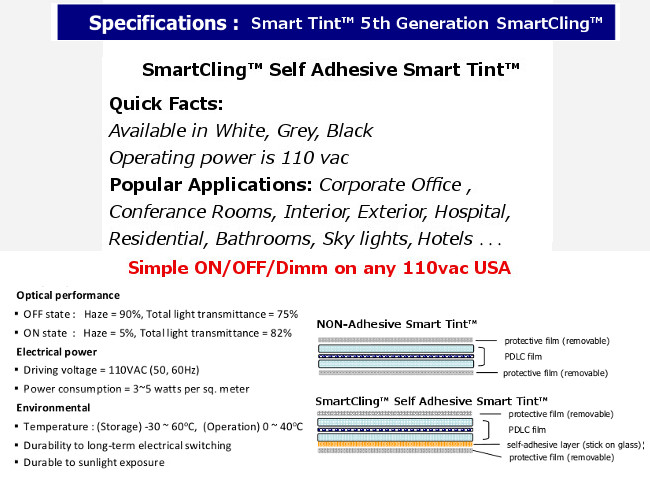

Specifications

Interlayer

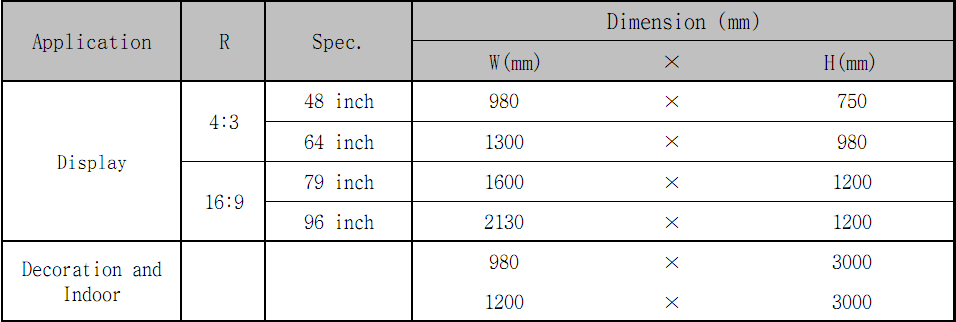

Standard Size
Technical

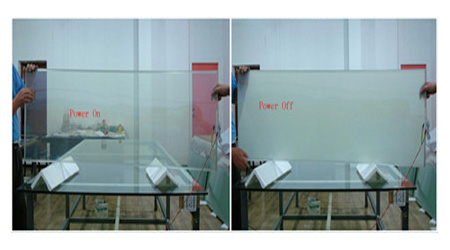

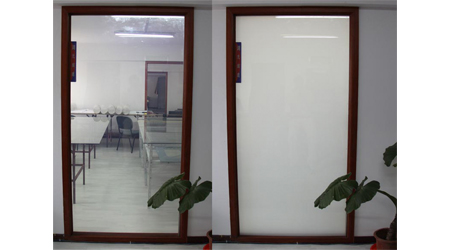

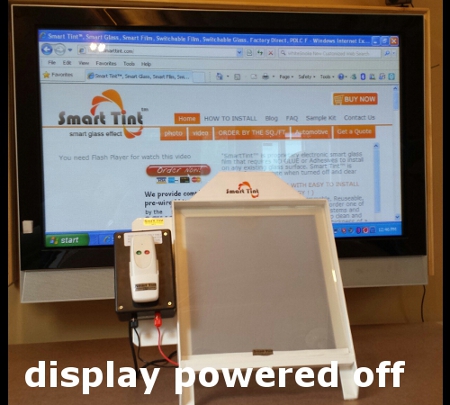

Power Off

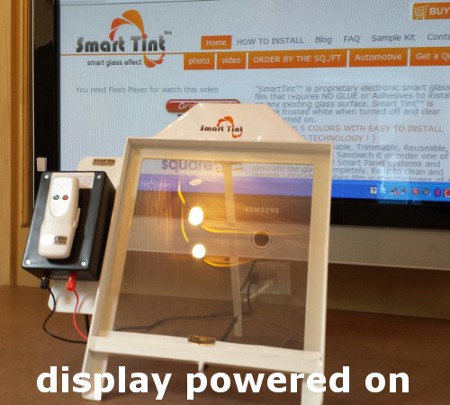

Power On
Power Off
Power On

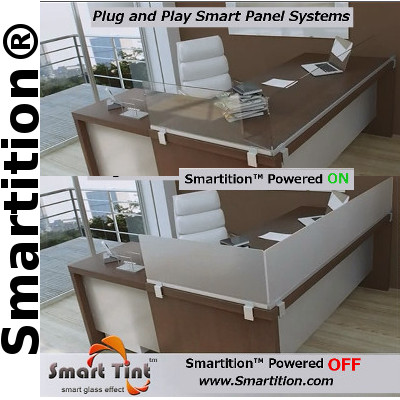

Smartition

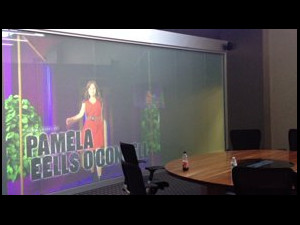

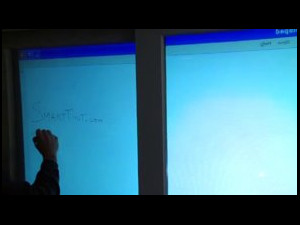

Can you project on Smart Tint film?

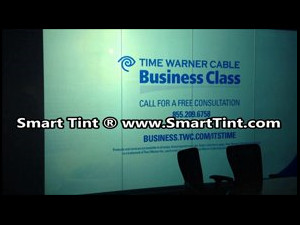

Yes, Smart Tint is ideal for use as a projection film. Rear Projection Film Store Front Advertising

Rear Projection

Can Smart Tint be installed on the top half of the glass only?
YES - You can install our SmartCling™ Self Adhesive on top half or bottom half only. Commercial

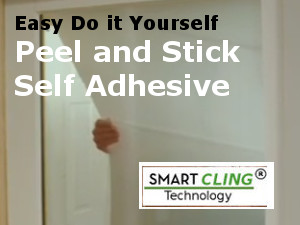

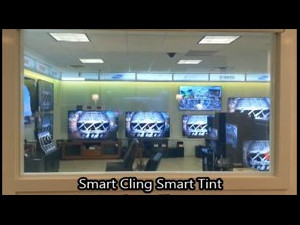

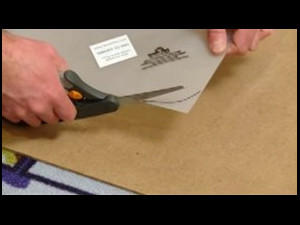

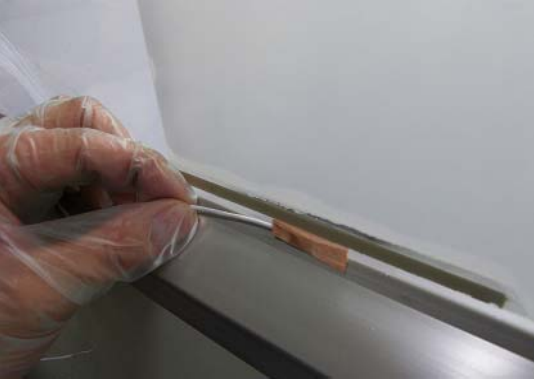

SmartCling™ Self Adhesive Installation DEMO

Is the Smart Tint® energy efficient?
- Yes, It is concidered a green product that consumes between 3 and 5 watts per meter squared.
Is it less expensive than smart glass?
- Yes, A fraction of the cost and no construction required.
Does it block the UV harmfull rays?
YES. It blocks over 98% of the harmfull UV rays in both its energized and unenergized state.
Can we install this product ourselves?

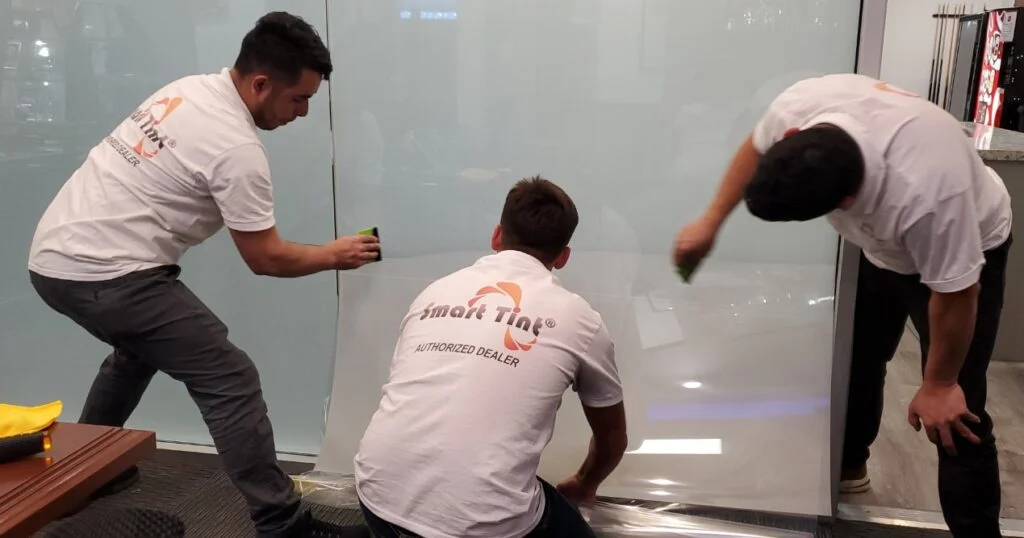

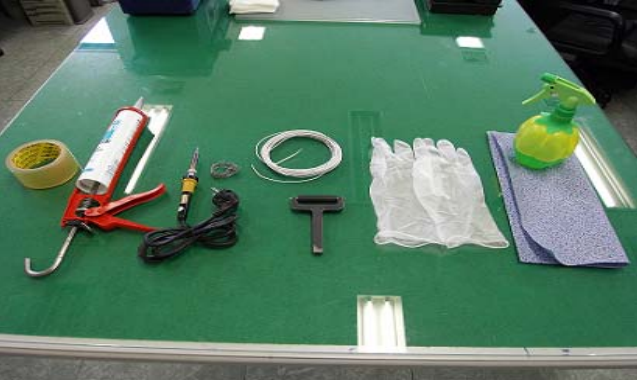

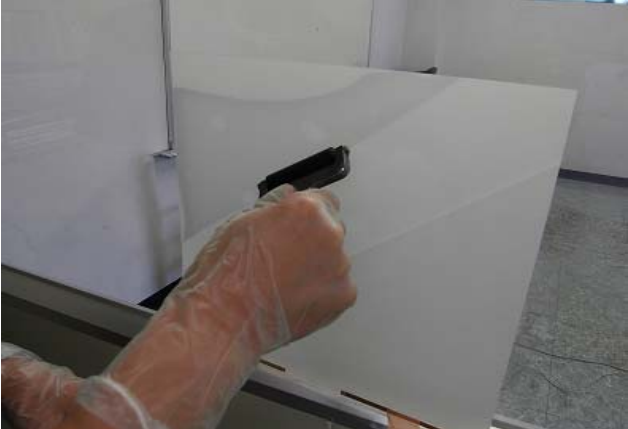

YES, we offer complete do it your self kits with practice pieces. Refer to our "How To Install" section for videos and step by step tutorials.
How much does Smart Tint® cost?

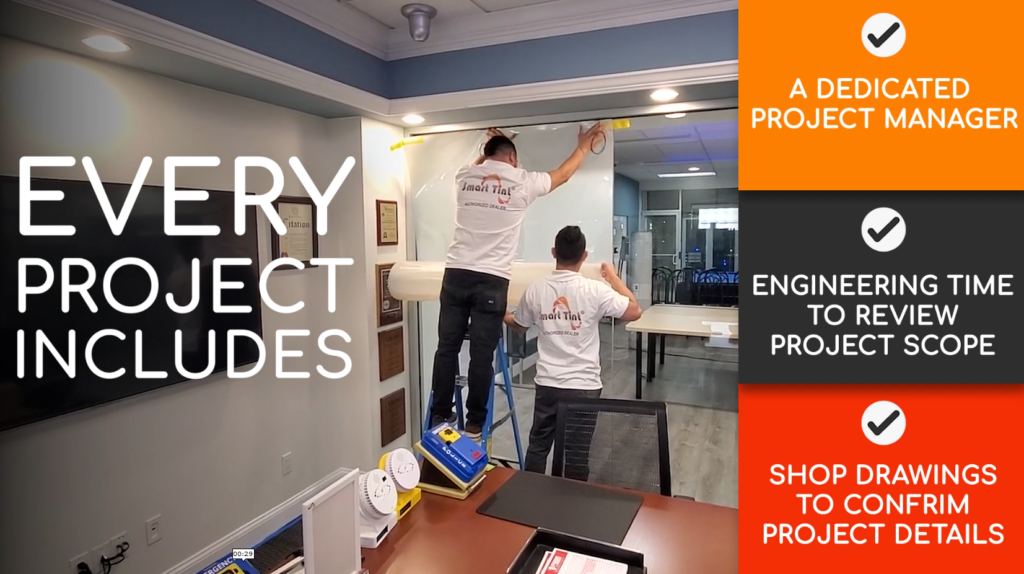

Every Smart Tint project is different and we custom cut your material into almost any shape or size, pre-wire, test and send you a ready to install kit with a package price. Lead times play a key role in job pricing. We match your material sizes with other orders for maximum efficiency and pass the savings on to you.
How can I purchase or get a job quote?
If you would like to buy now our online shopping cart allows you to order per sheet of material by the square foot. Simply click the "Order by the Square Foot" link above. If you would like to get a Quote then click the "Get a Quote"  link and provide us the details on your project.
What is the difference between Smart Cling Self Adhesive and the NON-Adhesive backings?

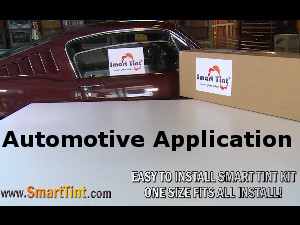

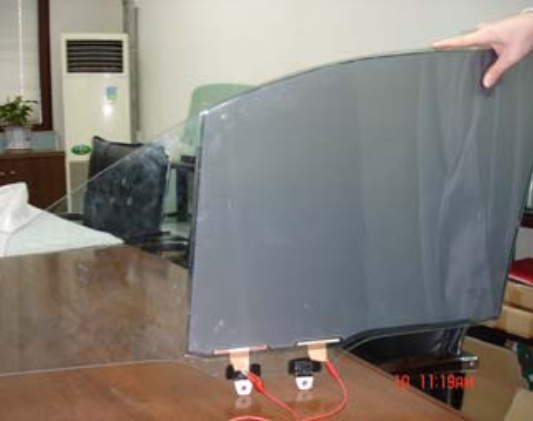

"Smart Tint offers a Smart Cling Self Adhesive that is thinner than the non-adhesive and widely used in the automotive industry because of its ability to contour to the complex curves of automotive glass." Smart Tint Non-Adhesive is very popular for projection screens, electronic blinds, white boards, high tech window treatments and mechanical installation techniques do to its rigidity. They both provide maximum clarity when energized and extreme privacy when powered off. Contact us today for pricing.
pdlc smart film specifications

Contact us


* Provide us the dimensions you need and we will send you a qoute. Sold by the square foot for large applications and the square inch for small. If you require a power supply and install kit simply let us know in your message.


Optional send us a pict of your window


Photos

Click Here For Recent Photo Library                          .

smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint smarttint

Videos

smart tint you tube channel

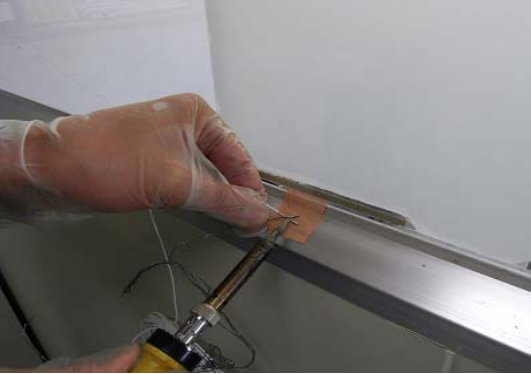

We test all of our material prior to shipment insuring Grade A Quality and maximum peformance in both operating modes. After our rigorous quality control testing is complete and the material is approved we apply a certified Smart Tint® label and assign a serial # for warranty purposes.





pdlc smart film specifications
rear projection film smart film installation video smart glass smart glass film

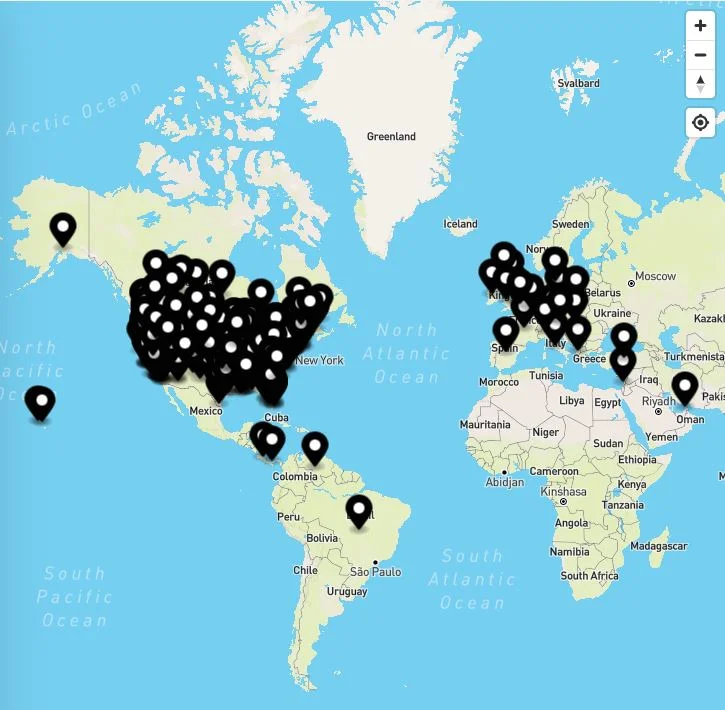

A Smart Tint® authorized dealer will contact you with in 24 hours of form submission. All dealers are liscenced/insured and have a dealername.smarttint.com web address to confirm authenticity.




If you have a GMAIL, HOTMAIL or MSN email account please check your spam box for return message.

With area code

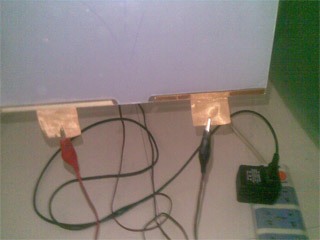

off

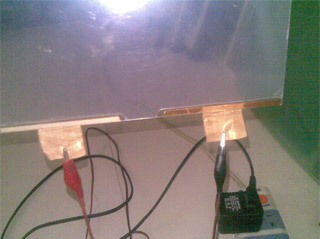

on

TO ORDER A COMPLETE Smart Tint® KIT FOR $249.00 WITH FREE SHIPPING CLICK BUY NOW . We recommend you buy a sample to see, feel and try before ordering a large piece of material. This will answer 99% of your questions. Sample kit's come with the actual tuned power supply and remote control required for your application. We will also credit your larger purchase 30% OF THE SAMPLE KIT COST . The kit includes 1 piece of Smart Tint® film 9 3/4" x 14", 1 power supply that can operate up to 100sq' with remote control to turn on and off and self installation instructions. Everything you need to install and operate. If you would like a custom size simply click get a quote. --->

Smart Tint® is the next generation in switchable privacy glass! Clear when powered on and private opaque when powered off. This easy to install film performs like switchable privacy glass with electrochomatic tint. Smart Tint® material is sold by the square foot. To order material only simply contact us and provide the dimensions you require. We will then send you a quote with a secure link to order. Material comes pre-cut and complete with copper leeds. Sample kits are perfect to demonstrate product for resellers, project managers or end users to get a feel for the product hands on. Sample kits come complete with a 9 3/4" X 14" piece of opaque white when powered off and clear when powered on Smart Tint® material, one power supply (powerfull enough to operate up to 200 sq. feet of material) and installation instructions. Everything you need to operate. FREE SHIPPING IN THE USA AND CANADA FOR 9 3/4" X 14" SAMPLE KITS ONLY. We custom cut all material to meet your requirements. We manufacture any size or shape. Price breaks begin at orders of 50 square feet or more. Contact us today with your smart tint needs. We ship domestic and internationaly. Smart tint draws only 3 watts of energy for every 100 sq. feet of material and blocks 99% UV rays.

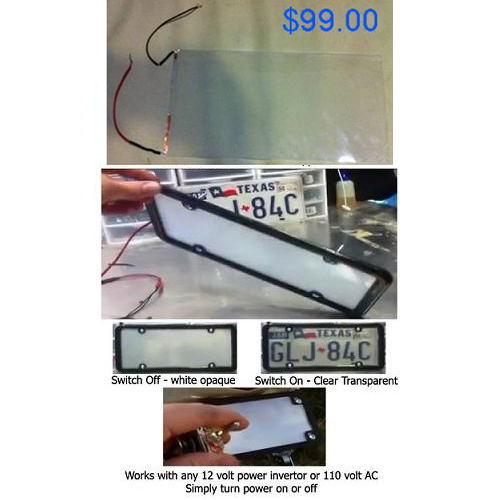

1. One piece 7" X 4" inch of Smart Tint Film- the same size as a motorcycle liscence plate. $99.00 plus 19.00 uspo certified shipping. Click here for demo video.
Motorcycle liscence plate size

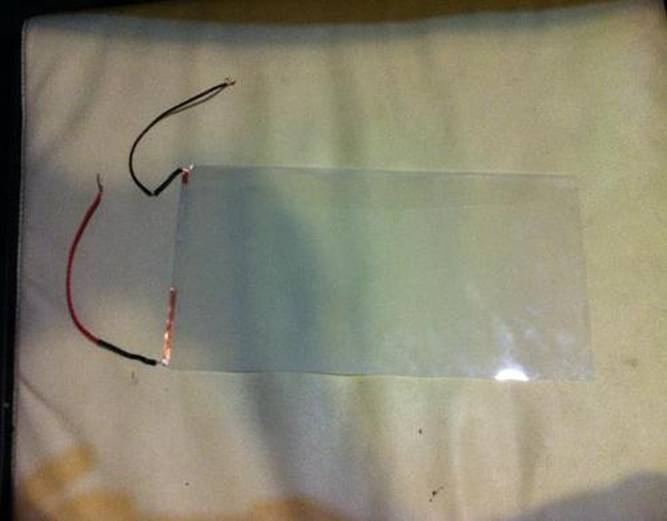

2. One piece 12" X 6" inches of Smart Tint Film- the same size as a car liscence plate. $149.00 plus 19.00 uspo certified shipping. Click here for demo video.
Car liscence plate size

Power Supplies

Custom Tuned output is 60 to 75V, and the current/amper is 10 watt for each square meter watt power supply with remote control. (avail for both standard USA 110v ac or european 220v ac) - can be used on multiple pieces

Smart Tint

Polymer dispersed liquid crystal film which is a kind of high tech product can switch from transparent to opaque instantaneously under electricity supply. It is transparent when power on and opaque when power off. It can be regulated and adjusted the light transmittance pass through the film by electricity supply.

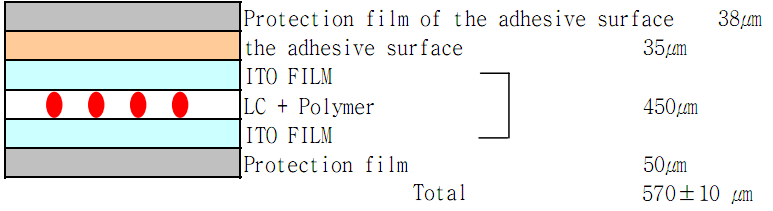

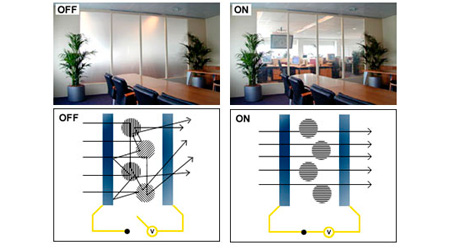

The film is composed of PET film, ITO film, polymer and liquid crystal molecules. When the film is under off state, the randomly aligned liquid crystal molecules stay along on the walls of capsule, the reflection of liquid crystal molecules and polymer makes light disperse so parallel light can pass through the film making it transparent.

Specification:

  • Operating voltage: 36VAC
  • Frequency: 50 ~ 60 HZ
  • Amprere: 100mA/ sqm
  • Power consumption: 5W/sqm
  • Parallel light transmittance: 75% on 10% off
  • Sunlight transmittance: 80% on 10% off
  • Haze: 2% on 80% off
  • Max size: 1200 * 3000 mm / 1.2 * 30 meters
  • Viewing angle: 130 degree
  • Thickness of PDLC film: 0.4mm, thickness of smart tint film: 0.65mm
  • Switch: 3 million times switch on and off
  • Life span: 10 years

Package:

  • wooden case
  • drum box / carton box

Accessories:

  • transformer

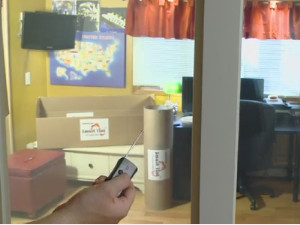

  • switch and remote
  • electrode material
  • machine

Application:

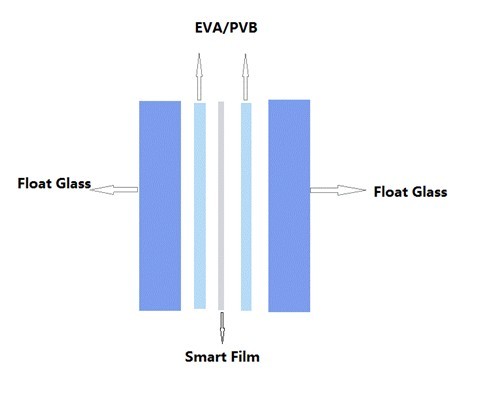

Switchable privacy glass (PDLC film laminated in between two pieces of float glass) window film, rear projection screen film, advertise, display, medical facility and game machines etc.

Smart Tint film:

Smart Tint film is identical product to common type smart pdlc film, the only difference is there has adhesive function on one side of the film surface. It can stick onto exist glass directly. More convenience to use without any processing. It is widely used for rear projection screen, hotel, partion, window and medical facitly etc.

About Us

Smart Tint® Switchable electric films are designed to variably adjust light between a transparent and an opaque state with AC Power and are available in  2 power levels. Level 1 is widely used in the automotive industry operating at 45-75 VAC and Level 2 is preferred in the construction industry operating at 110 VAC. Smart Tint technology enables the instant privacy of windows on demand with the flick of a switch or the turn of a dimmer and is the next generation in switchable privacy glass and electronic dimmable windows treatments.

Smart Tint Films are used for many architectural applications in corporate, industrial, residential, transportation, rear projection, medical centers, offices, hotels, conference rooms, and many more.

We provide products to Contractors, Builders, Developers, Glass Companies, Laminators and utilize Distribution networks World Wide.

We offer an online shopping cart for instant purchases and wholesale quotes on a per project basis.

Thank You for choosing Smart Tint® as your #1 source for switchable film technology and SmartTint.com and American company based in the United States.

What is Smart Tint?

Smart Tint electrochromic switchable pdlc film is composed of a PET film, ITO film, polymer and liquid crystal molecules. When the film is under off state, the randomly aligned liquid crystal molecules stay along on the walls of capsule, the reflection of liquid crystal molecules and polymer makes light disperses then it dorection then parallel light can pas through the film makes it transparent.

Specifications:

  • Operating voltage:2 types Available
  • Type 1: Mobile 45-75 VAC
  • Type 2: USA Standard 110 VAC
  • Frequency: 50 ~ 60 HZ
  • Power consumption: 5W/sqm

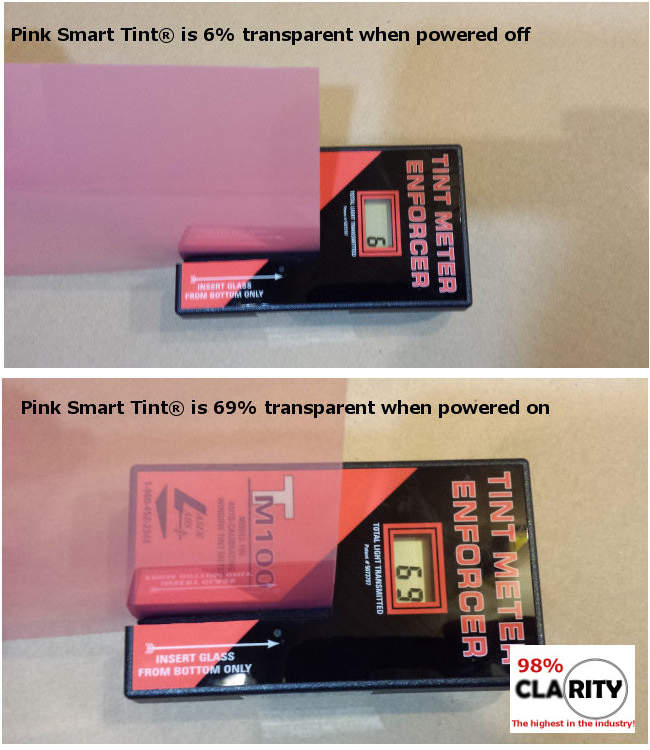

  • Parallel light transmittance: 81% on 6% off (see color specs)
  • UV Block: up to 98%
  • Haze: 2% on 80% off
  • Solar Heat Reduction up to 42%
  • Max size: 1778 * 3048 mm / 70" x 122"
  • Viewing angle: 150 degree
  • Switch: 3 million times switch on and off
  • Life span: 10 years

Accessories:

  • Mobile kit transformers ( 12DC TO 45-75 VAC)
  • Remote controls

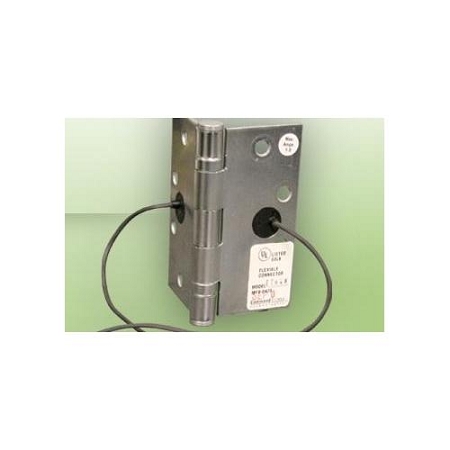

  • Electric Hinges

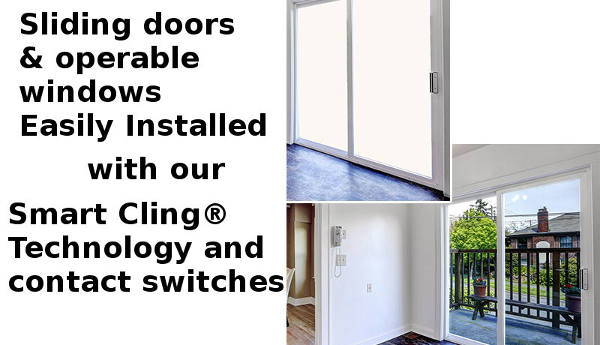

  • Contact switches for sliding door applications

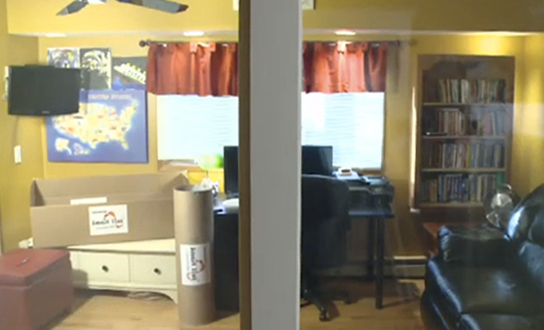

  • Variable dimmer systems

Auto Computerized Cutting Machine

  • A product uses proprietary designed cutter bit system, Achieve smoothly and rapidly straight line cut on smart PDLC film, It runs in a steady status and no de-lamination.
  • There are two different knife, Straight line knife and circle knife.
  • All fine tuning can be set up with the control panel on the machine. Including deepness cutting and software smoothening functions.
  • Fast speed reaches 800mm/s
  • Cutting table uses imported fiber board, Long life span, accuracy cutting, stable thickness and shape.
  • Straight line guide rails imported from Italy, Keep a stable operation and high accuracy.
  • Auto computerized control, File can be input to machine directly from Auto cad, Coral Draw, PDF format.
Operating System Win 2000, XP, Vista, Win 7
Cutting Speed 800mm/s
Positioning device Infrared
Method of fixing Vacuum absorption
Format compatible Grafic Software
Control panel Liquid crystal display
Operating voltage AC220V, 50HZ
Power consumption 4KW
Max cutting size 1200*3000mm
Machine size 1685*3382*1010mm
pdlc electrochromic
