Description:

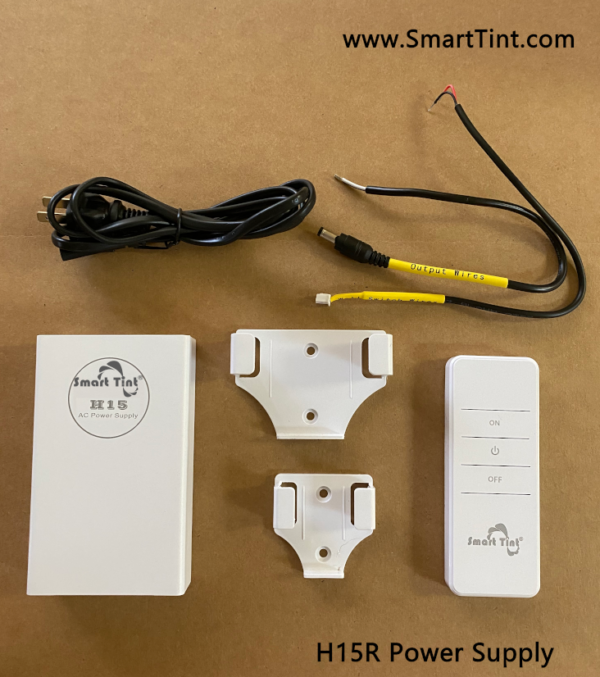

Smart Tint Power Supply H-15R with Remote Control/Wall Switch On/Off Only
Includes remote control.
The H-15R power control unit is extremely efficient and
designed for long term permanent installation.
The H-15R is made of fine copper material, and has a very
stable output. This 15W unit controls up to 30 sq. feet
of our Smart Tint® 6th Generation Smart Film material and is constructed of a high-performance flame retardant epoxy resin casting.
The operating temperature is very low and suitable for
various environments.
The H-15R power control unit has a circuit board that utilizes a
self recovery system designed to cut the power by itself when over
loaded.
This system will auto restart when over load or short is
corrected. Includes RF remote and dry contact relay input
compatible with 3rd party control systems such as crestron, lutron,
savant, dmx etc.
corrected. Includes RF remote and dry contact relay input
compatible with 3rd party control systems such as crestron, lutron,
savant, dmx etc.
Features:
Rated Power: 15W
Rated Ampere: 2A
Input Voltage: AC 110-120 vac
Rated Ampere: 2A
Input Voltage: AC 110-120 vac
Output voltage: AC 48-60 vac

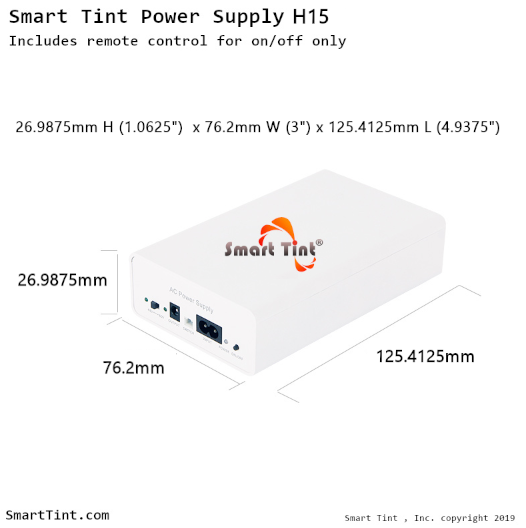

Size: 26.9875mm H (1.0625″) x 76.2mm W (3″) x 125.4125mm L (4.9375″)
Size: 26.9875mm H (1.0625″) x 76.2mm W (3″) x 125.4125mm L (4.9375″)
