Smart Tint® Power Supply H50 w/ Remote Control/Wall Switch/up to 100 sq feet

$346.25

Genuine Smart Tint® Technology

Every piece of our Smart Tint has a serial number to affirm its authenticity. We are the original USA trademarked Smart Tint® manufacturer.

Dedicated Project Manager

Your project is backed by a dedicated manager, ready to assist with installation queries, wiring configurations, and engineering consultations to ensure your project's success.

Smart_Tint_Smart_Cling_Self_Adhesive

Smart Cling® Self Adhesive Technology

Peel-n-Stick Installation

Custom Trimmed

We will pre-cut your order to the size you request at online check out. "Simply deduct the installation tollerance of 3/16" of the visible glass area you with to cover"

Pre-Wired

Choose which side of the film you would like the wires attached to

Description:

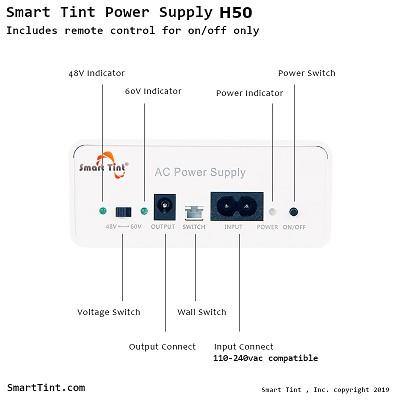

Smart Tint® Power Supply H-50R with Remote Control/Wall Switch On/Off Only

Includes remote control.
The H-50R power control unit is extremely efficient and
designed for long-term permanent installation.
The H-50R is made of fine copper material and has a very
stable output. This 50watt unit controls up to 100 sq. feet of our Smart Tint 8th Generation Smart Film material and is constructed of a high-performance flame-retardant epoxy resin casting.
The operating temperature is very low and suitable for
various environments.
The H-50R power control unit has a circuit board that utilizes a
self-recovery system designed to cut the power by itself when overloaded. This system will auto-restart when overload or short is
corrected.
Includes RF remote and dry contact relay input
compatible with 3rd party control systems such as Crestron, Lutron,
savant, Dmx, etc.

Features:

Rated Power: 50W
Rated Ampere: 2A
Input Voltage: AC 110-120 vac
Output voltage: AC 48-60vac VAC

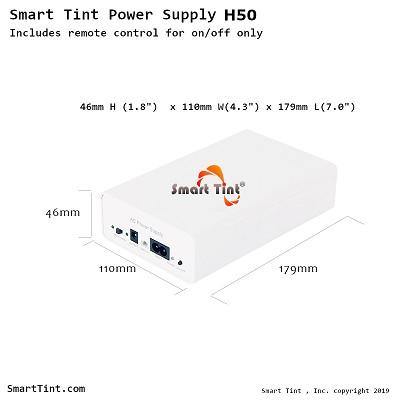

Size: 46mm H (1.8″)  x 110mm W(4.3″) x 179mm L(7.0″)




Smart Tint® Power Controller Specifications


Smart Tint® Power Controller Specifications

Smart Tint Power Supplies (On/Off)
Product Name Features Coverage Area
Smart Tint® Power Supply H-15R On/Off Up to 30 sq feet
Smart Tint® Power Supply H-30R On/Off Up to 60 sq feet
Smart Tint® Power Supply H-50R On/Off Up to 100 sq feet
Smart Tint® Power Supply H-100R On/Off Up to 180 sq feet

Additional Transformer Details
Input Voltage 220-240VAC or 110VAC
Output Voltage 46VAC/60VAC
Operating Temperature -4°F to 140°F

Remote Controller Specifications
Frequency 433MHz
Battery 1x 12VDC
Function On/Off
Remote Control Distance >82 ft

Warranty and Packaging
Warranty Period 60 Months (5 Years)

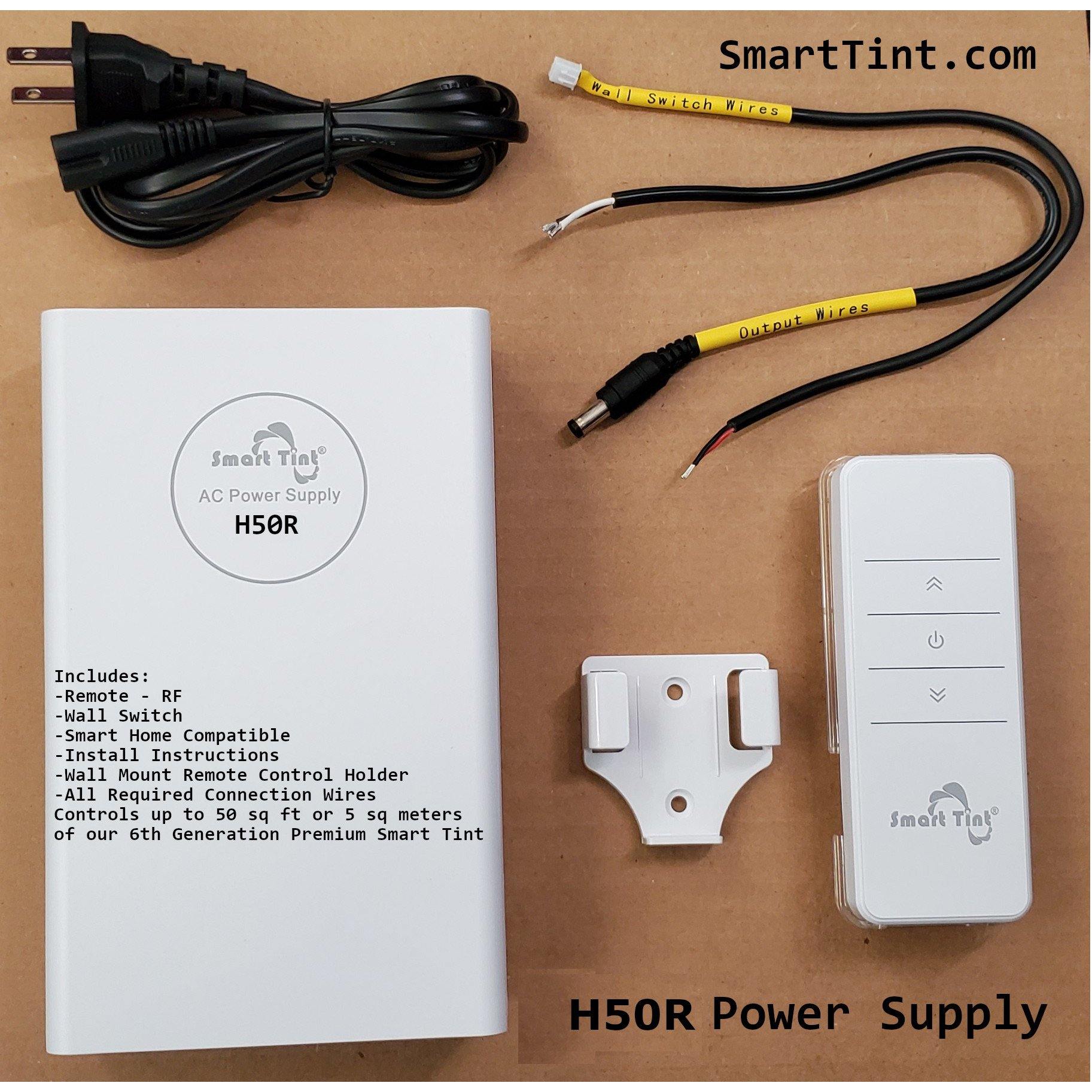

Package Contents
  • 1x Transformer
  • 1x Remote Controller
  • 1x Input Cable
  • 1x Output Cable
  • 1x Wall Switch Cable
