Smart Tint® Power Supply H100 with Remote Control/Wall Switch/up to 180 sq feet

$373.75

Genuine Smart Tint® Technology

Every piece of our Smart Tint has a serial number to affirm its authenticity. We are the original USA trademarked Smart Tint® manufacturer.

Dedicated Project Manager

Your project is backed by a dedicated manager, ready to assist with installation queries, wiring configurations, and engineering consultations to ensure your project's success.

Smart_Tint_Smart_Cling_Self_Adhesive

Smart Cling® Self Adhesive Technology

Peel-n-Stick Installation

Custom Trimmed

We will pre-cut your order to the size you request at online check out. "Simply deduct the installation tollerance of 3/16" of the visible glass area you with to cover"

Pre-Wired

Choose which side of the film you would like the wires attached to

Description:

Smart Tint® Power Supply H-100R with Remote Control/Wall Switch On/Off Only
Includes remote control.

The H-100R power control unit is extremely efficient and
designed for long-term permanent installation.

The H-100R is made of fine copper material and has a very
stable output. This 100watt unit controls up to 180 sq. feet of our Smart Tint 6th Generation Smart Film® material and is constructed of a high-performance flame-retardant epoxy resin casting.

The operating temperature is very low and suitable for
various environments.

The H-100R power control unit has a circuit board that utilizes a
self-recovery system designed to cut the power by itself when overloaded.

This system will auto-restart when overloaded or till the short is

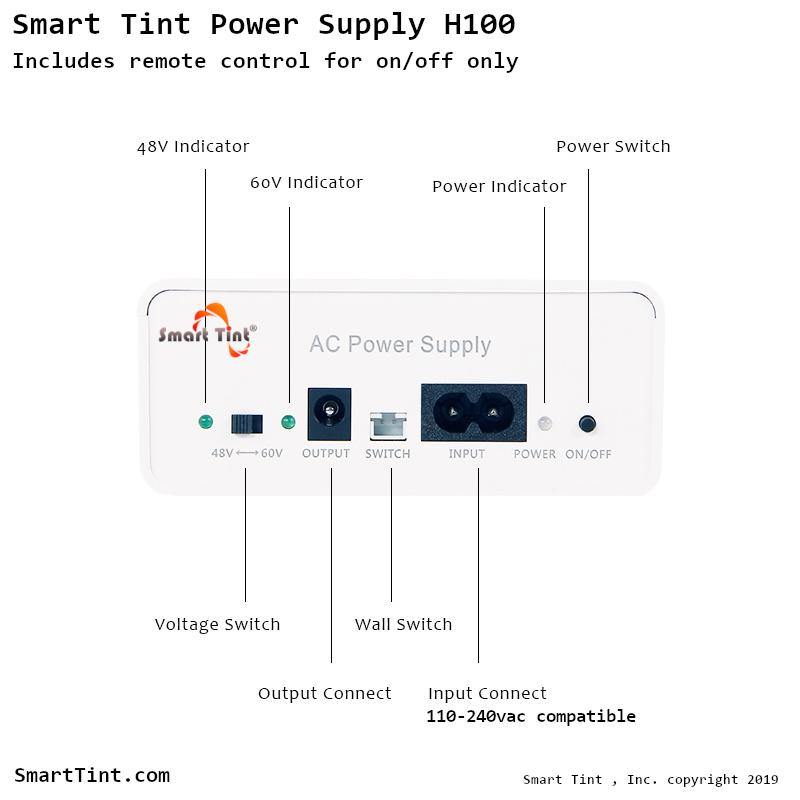

corrected. Includes RF remote and dry contact relay input
compatible with 3rd party control systems such as Crestron, Lutron,
Savant, Dmx etc.

Features:

Rated Power: 100W
Rated Ampere: 2A
Input Voltage: AC 110-120 vac
Output voltage: AC 48-60vac VAC

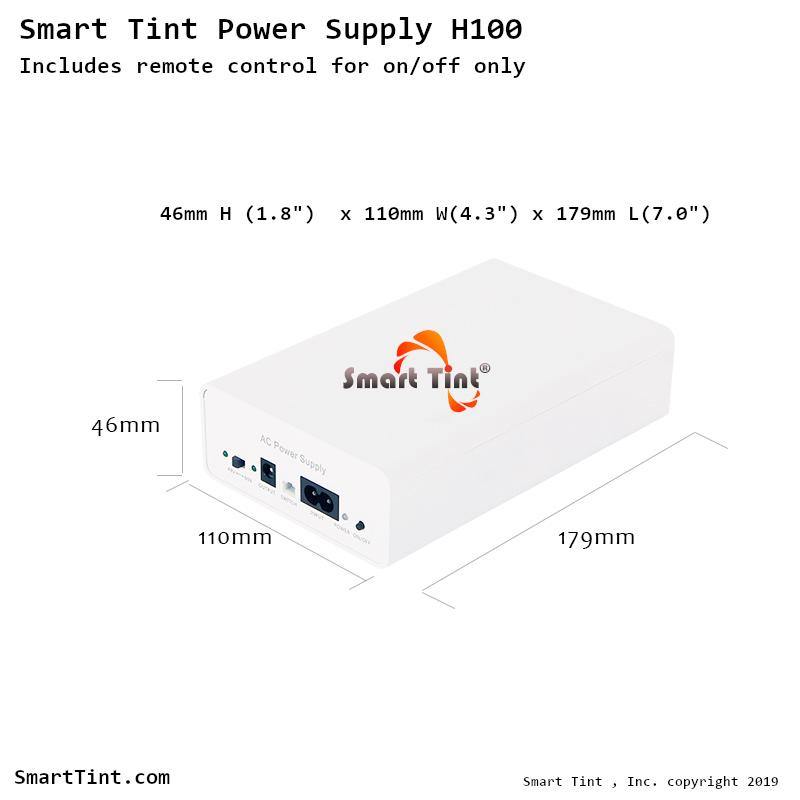

Size: 46mm H (1.8″)  x 110mm W(4.3″) x 179mm L(7.0″)




Smart Tint® Power Controller Specifications


Smart Tint® Power Controller Specifications

Smart Tint Power Supplies (On/Off)
Product Name Features Coverage Area
Smart Tint® Power Supply H-15R On/Off Up to 30 sq feet
Smart Tint® Power Supply H-30R On/Off Up to 60 sq feet
Smart Tint® Power Supply H-50R On/Off Up to 100 sq feet
Smart Tint® Power Supply H-100R On/Off Up to 180 sq feet

Additional Transformer Details
Input Voltage 220-240VAC or 110VAC
Output Voltage 46VAC/60VAC
Operating Temperature -4°F to 140°F

Remote Controller Specifications
Frequency 433MHz
Battery 1x 12VDC
Function On/Off
Remote Control Distance >82 ft

Warranty and Packaging
Warranty Period 60 Months (5 Years)

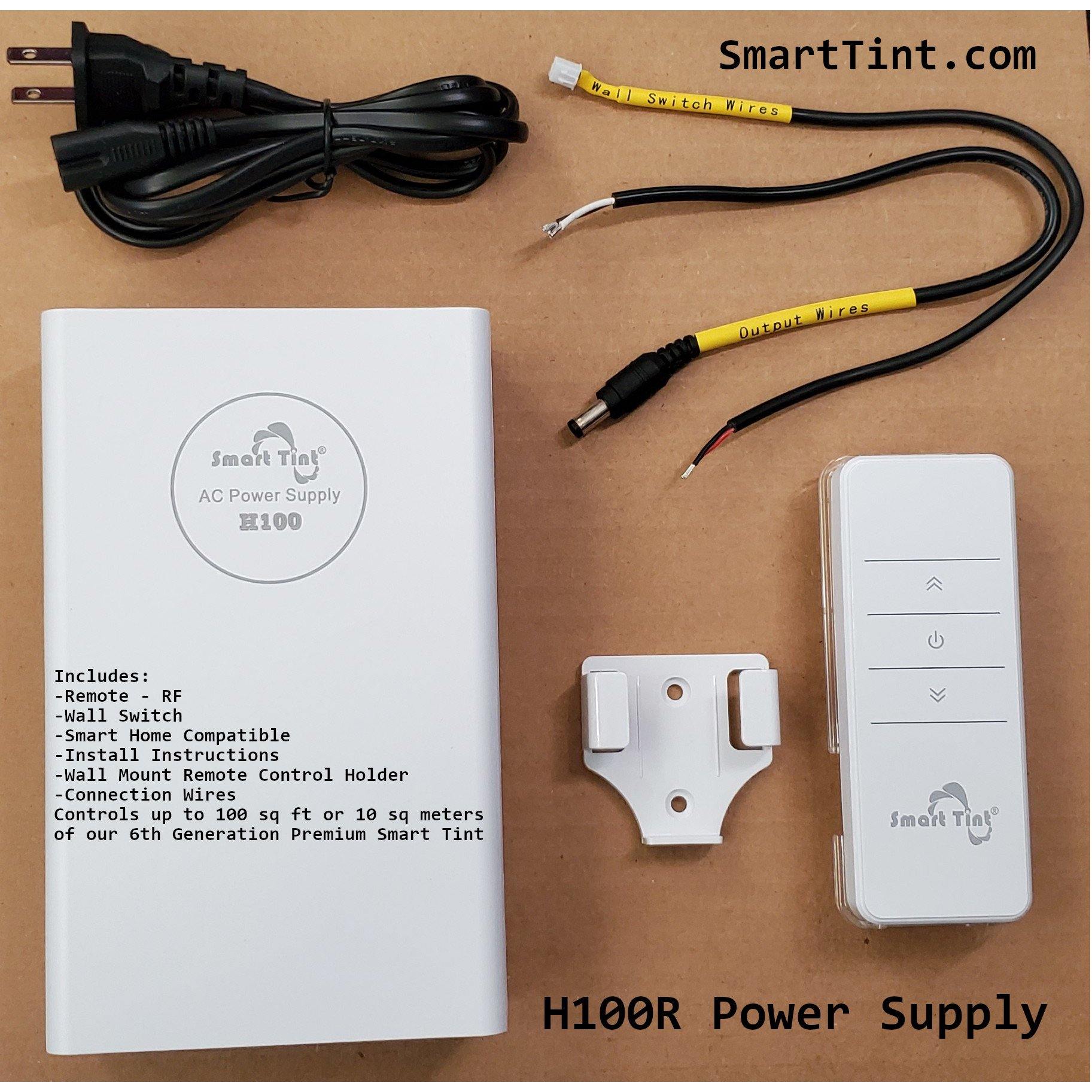

Package Contents
  • 1x Transformer
  • 1x Remote Controller
  • 1x Input Cable
  • 1x Output Cable
  • 1x Wall Switch Cable
